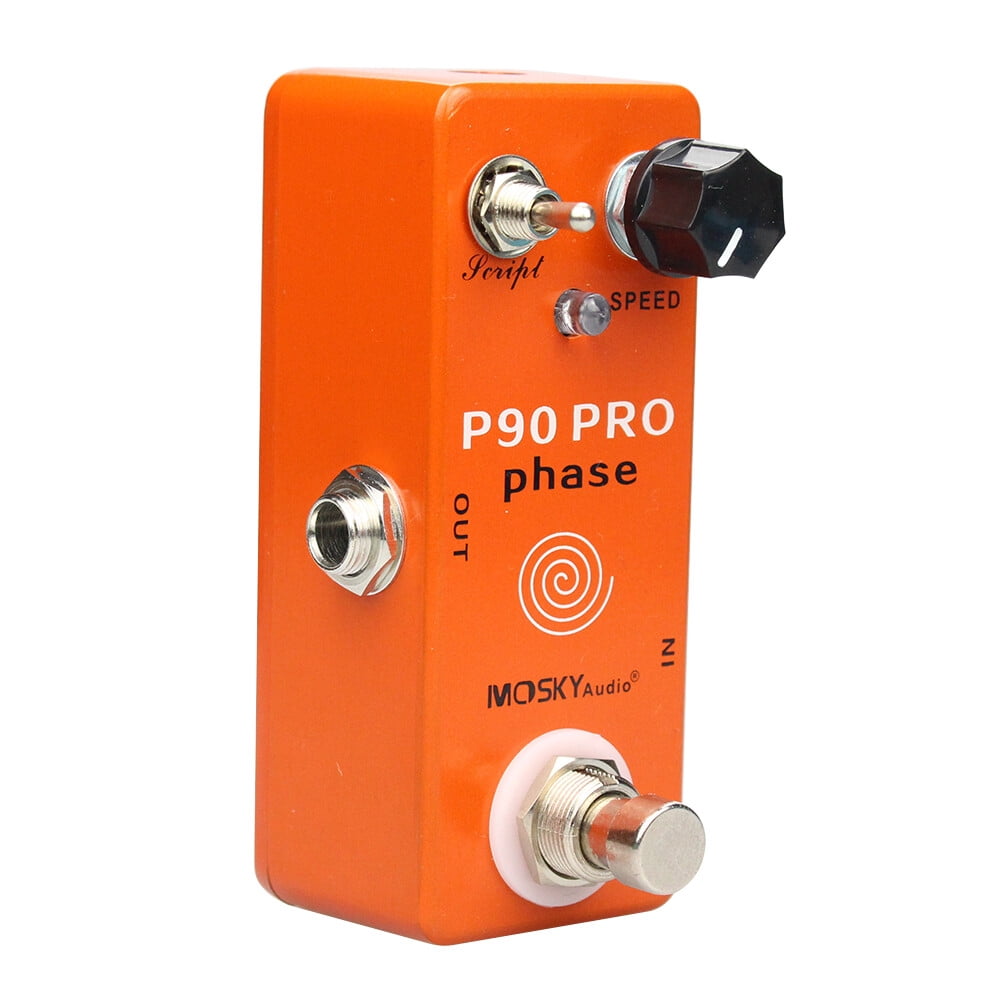

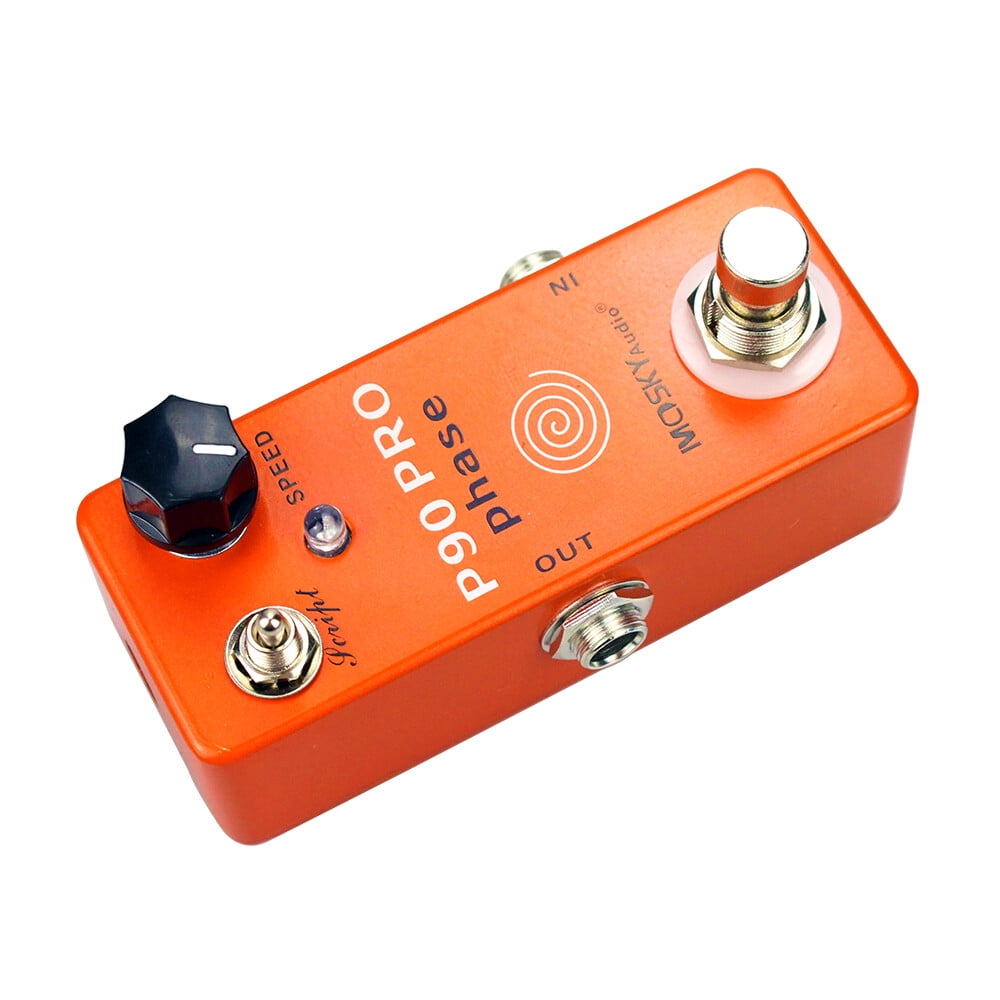

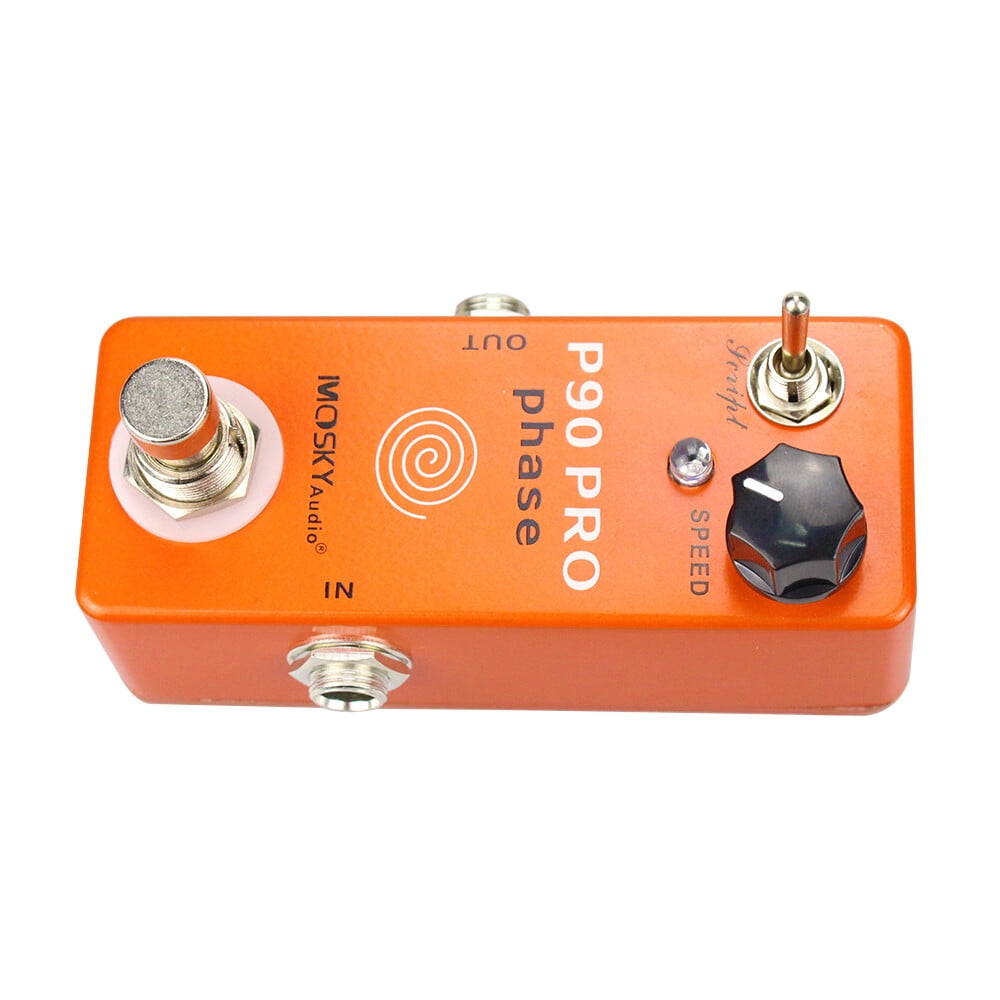

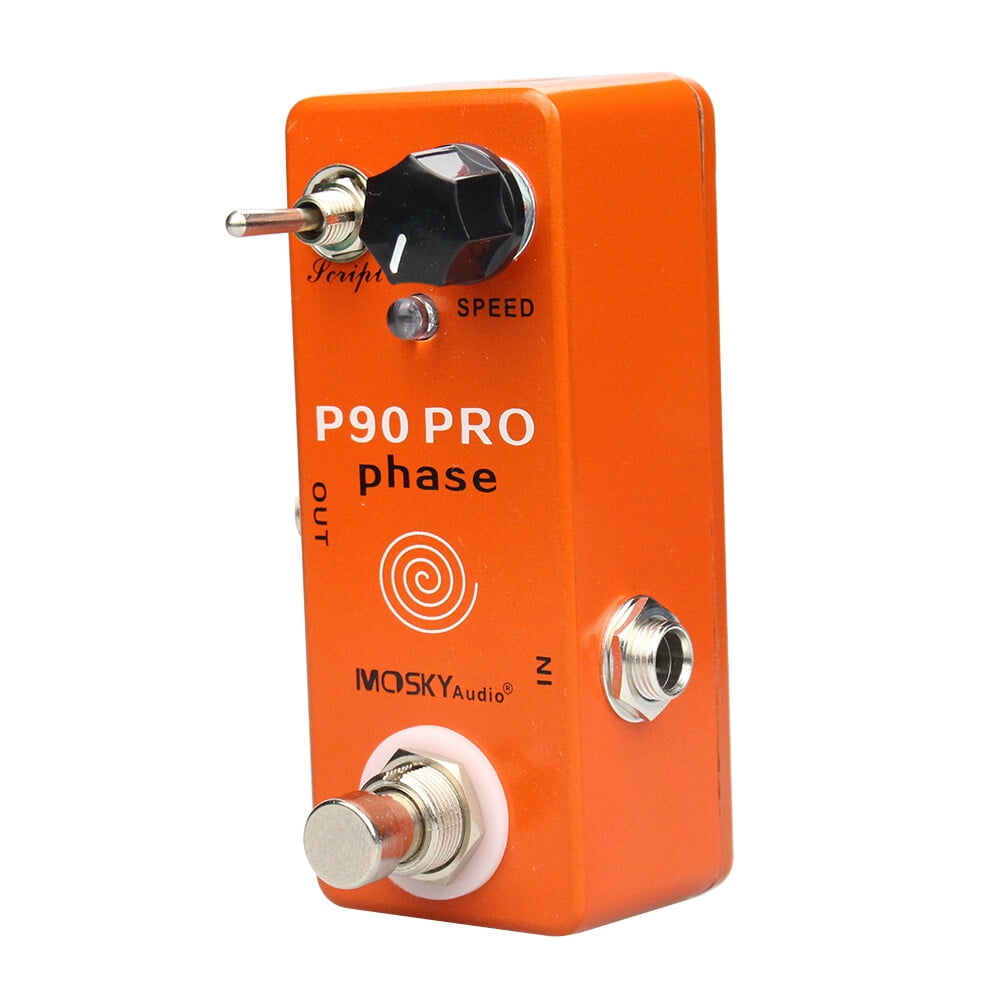

MOSKY P90 PRO Phase Pedal Electric Guitar Pedal Phaser Phase90 Vintage Effect Pedal True Bypass

Specification: Input impedance: approx. 1M Output impedance: approx. 10K Current consumption: 100mA at 9VDC DC supply voltage range: 9 VDC Dimensions (L/W/H): 94(L)MM x 39(W)MM x 32(H)MM Power: 9VDC, Negative Tips (Regulated recommended)(not included) Weight: 165g Packing list: 1 x Pedal 1 x Manual

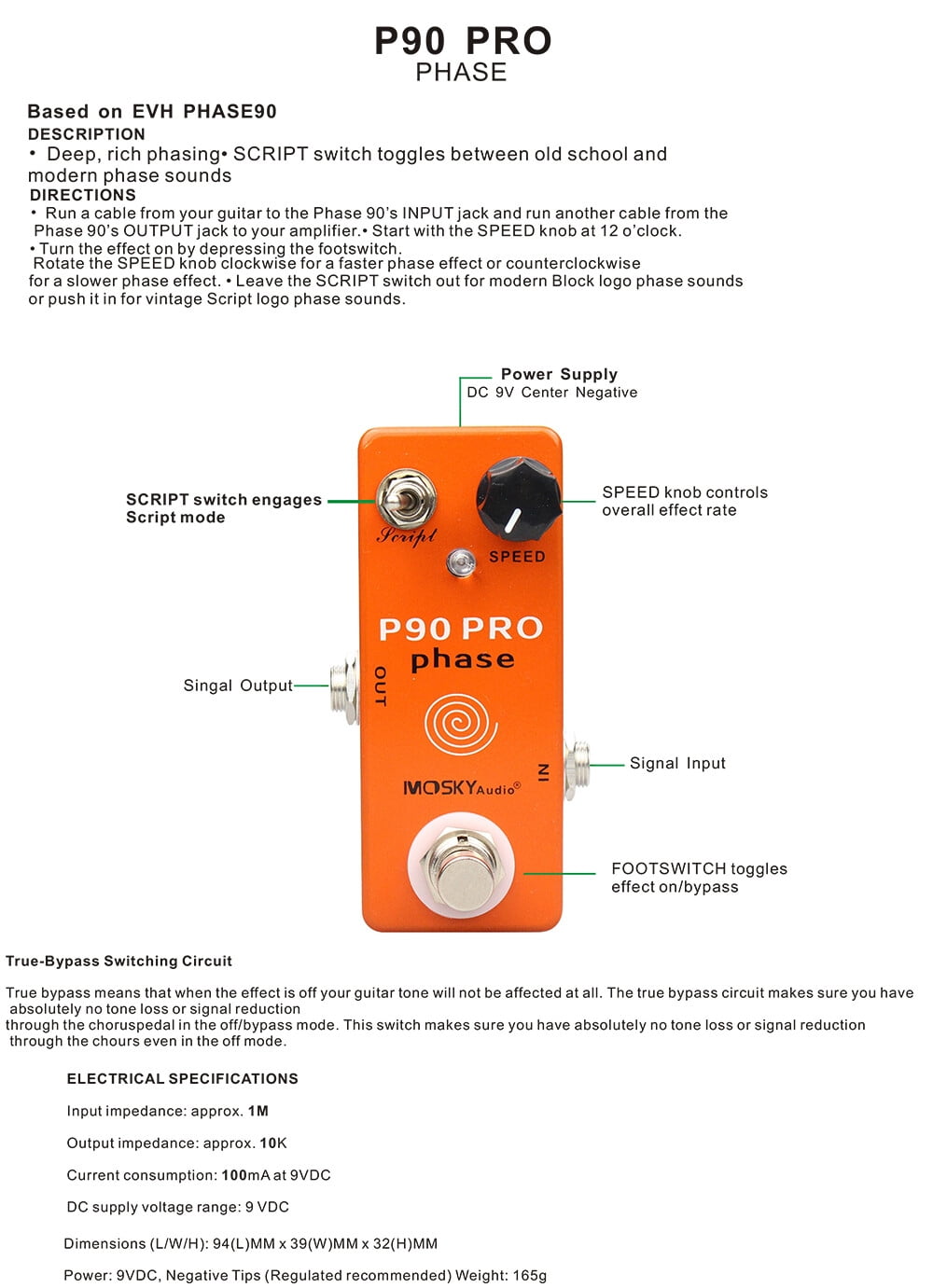

• Deep, rich phasing• SCRIPT switch toggles between old school and modern phase soundsDIRECTIONS
• Run a cable from your guitar to the Phase 90’s INPUT jack and run another cable from the Phase 90’s OUTPUT jack to your amplifier.• Start with the SPEED knob at 12 o’clock.
• Turn the effect on by depressing the footswitch.
• Rotate the SPEED knob clockwise for a faster phase effect or counterclockwise for a slower phase effect.
• Leave the SCRIPT switch out for modern Block logo phase sounds or push it in for vintage Script logo phase sounds.
• True-Bypass Switching CircuitTrue bypass means that when the effect is off your guitar tone will not be affected at all. The true bypass circuit makes sure you have absolutely no tone loss or signal reduction through the choruspedal in the off/bypass mode. This switch makes sure you have absolutely no tone loss or signal reduction through the chours even in the off mode.
